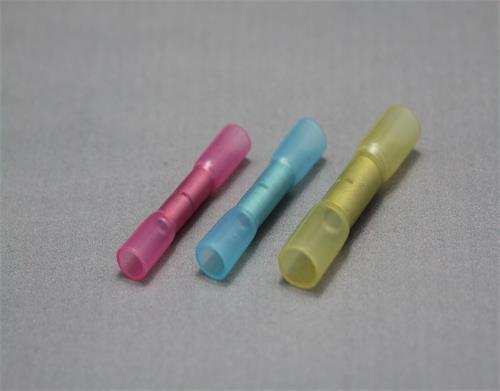

- Product name: Heat Shrink Butt Splices Terminals
- Data name: Heat Shrink Butt Splices Terminals_Heat Shrink Wire terminals
Shrink ratio: 3:1
Excellent conductivity property
High transparency, High tensile strength
Excellent stretch and mechanical damage resistance
High elasticity assures steady performance
Water proof and moisture resistance
Operating temperature: -55℃～125℃
Product details

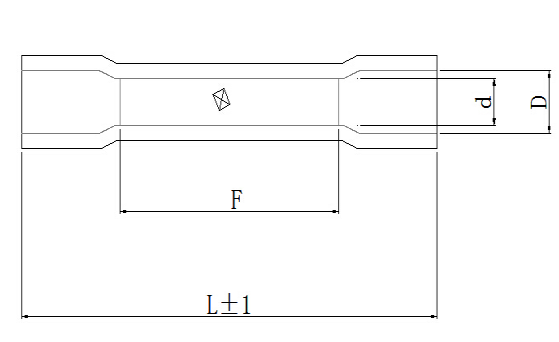

Product Code | Butt Splice Dimensions | F | D | Color | Wire Range | |
| D Min. | L Nom. | |||||
| HS-BHT0.5 | 3.2 | 28 | 12 | 1.0 | Clear/Yellow | 0.25-0.5mm2 (26-24AWG) |
| HS-BHT1.25 | 4.8 | 35 | 15 | 1.6 | Red | 0.5-1.5mm2 (22-18AWG) |
| HS-BHT2 | 5.8 | 35 | 15 | 2.2 | Blue | 1.5-2.5mm2 (16-14AWG) |
| HS-BHT5.5 | 6.8 | 41 | 15 | 3.4 | Yellow | 4-6mm 2(12-10 AWG) |
