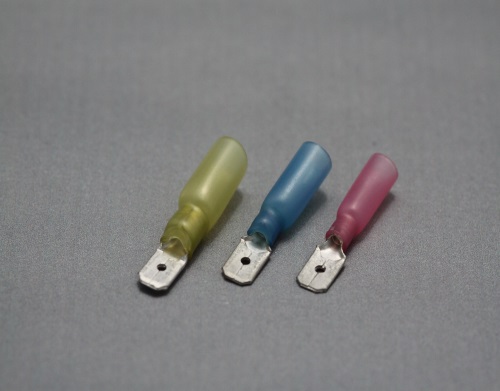

  • Product name: Heat Shrink Male Terminals
  • Data name: Heat Shrink Male Terminals_Heat Shrink Wire terminals
Shrink ratio: 3:1
Excellent conductivity property
High transparency, High tensile strength
Excellent stretch and mechanical damage resistance
High elasticity assures steady performance
Water proof and moisture resistance
Operating temperature: -55℃～125℃
Download

Product details

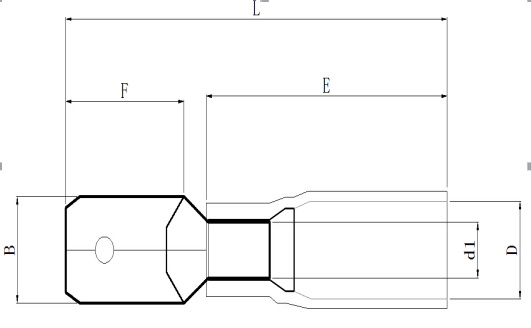

Product Code

D
(mm)

d1
(mm)

B
(mm)

E
(mm)

L
(mm)

Color

Conductor

Wall of Copper Terminals(mm)
HS-MDD1.25-1874.8 1.6 4.8*0.8 2131Red0.5-1.5mm2
(22-18AWG)		0.4




HS-MDD2-187 5.8 2.2 4.8*0.82131Blue1.5-2.5mm2
(16-14AWG)
HS-MDD5.5-187 6.8 3.4 4.8*0.8 25 35 Yellow 4-6mm
(12-10AWG)
HS-MDD1.25-250 4.8 1.6 6.3*0.8 2131Red0.5-1.5mm2
(22-18AWG)
HS-MDD2-250 5.8 2.2 6.3*0.8 21 31 Blue 1.5-2.5mm2
(16-14AWG)
HS-MDD5.5-250 6.8 3.46.3*0.825 35Yellow4-6mm
(12-10AWG)
