- Product name: 540 SERIES FUSED TERMINAL EURO STANDARD
- Data name: 540 SERIES FUSED TERMINAL EURO STANDARD_Terminal table
Product details

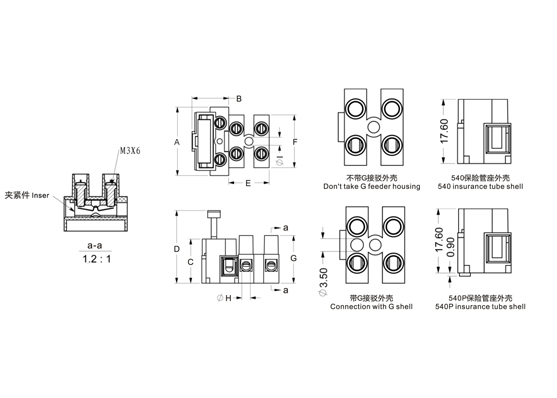

Size | A | B | C | D | E | F | G | H | I | Download |
| 540 Shell | 27.3 | 14.6 | 17.6 | 14.6 | ||||||
| 540P Shell | 27.3 | 14.6 | 18.5 | 14.6 | ||||||
| 540B Shell | 28.5 | 15.3 | 14.6 | 20.0 | ||||||
| 540-3 Connecting housing | 16.1 | 21.0 | 19.0 | 3.4 | 3.2 | |||||
| 540-3G Connecting housing | 16.1 | 21.0 | 19.0 | 3.4 | 3.2 | |||||
| 540-5 Connecting housing | 36.1 | 21.0 | 19.0 | 3.4 | 3.2 | |||||
| 540-5G Connecting housing | 36.1 | 21.0 | 19.0 | 3.4 | 3.2 | |||||
| Earthing screw | M3×14 | |||||||||
Electrical properties | Download | |||
| The reference standard | IE | CUL | CQC | |
| Voltage(V) | 250 | 400 | 400 | |
| Ampere(A) | 6.3 | 10 | 6.3 | |
| 额定连接容量(mm²) Wiring Capacity | 2.5 | |||
| 美规线号(AWG) | 14 | |||
| Meterial | ||||
| 塑料件 Plastic parts | Polyamide 66\UL94V-2garde | |||
| 夹紧件 Inser | Steel or Ally Copper (electroplating) | |||
| 螺钉 Screw | Iron(Zine-plated) | |||
| 环保温度 Ambient Temperature | T-40℃~100℃ | |||
