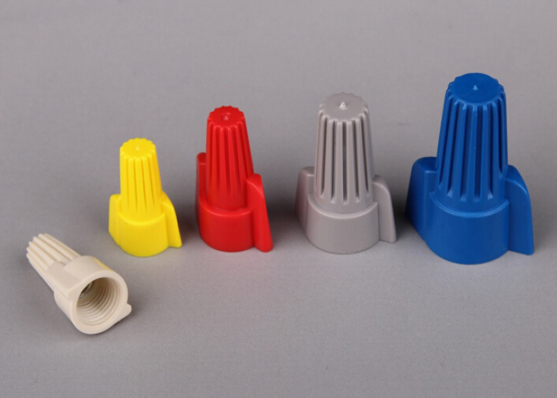

- Product name: WINGED WIRE CONNECTORS
- Data name: WINGED WIRE CONNECTORS_Wire connector
Tough thermoplastic,UL94v-2 flame-retardant shell rated at 105℃
Usage:peel wire coat,insert the wire in ,then tighten
Feature::peel wire coat,available in socket tools for easy installation of connectors
Product details

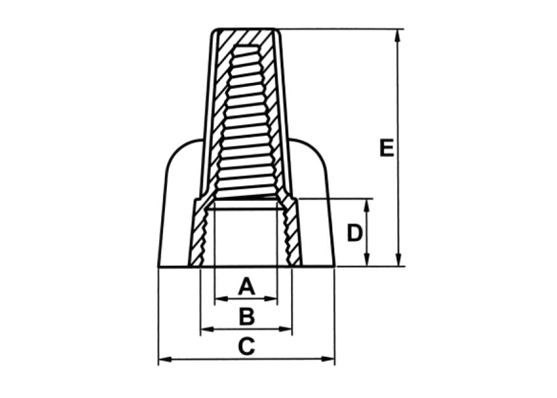

Model | Dimensions(mm) | Download | ||||
| A | B | C | D | E | ||
| P11 | 6.40 | 9.80 | 18.20 | 9.00 | 25.80 | Drawing |
| P12 | 7.20 | 11.60 | 18.30 | 9.20 | 29.00 | Drawing |
| P13 | 9.00 | 13.00 | 23.00 | 9.60 | 31.80 | Drawing |
| P15 | 10.00 | 14.90 | 25.50 | 10.00 | 33.30 | Drawing |
| P17 | 12.00 | 17.80 | 32.00 | 13.00 | 40.00 | Drawing |
Order Number | Color | Wire RangeRating | Approvals | Packing | Cat.No. | Download |
| P11 | Yellow | 300V/600V Max. 105℃(221℉) No.18-No.10 AWG Max.2#12w/1#14 Min3#18 |  | Ctn of 5000 (10 plastic bags, 500 ea.) | P11-01 | |
| Box of 100 | P11-00 | |||||
| P12 | Tan | 600V Max. 105℃(221℉) No.22-No.8AWG Max.4#12 Min3#22 Sol |  | Ctn of 5000 (10 plastic bags, 500 ea.) | P12-01 | |
| Box of 100 | P12-00 | |||||
| P13 | Red | 300V/600V Max. 105℃(221℉) No.18-No.8AWG Max.5#12Sol Min3#16 | | Ctn of 5000 (10 plastic bags, 500 ea.) | P13-01 | |
| Box of 100 | P13-00 | |||||
| P15 | Grey | 600V Max. 105℃(221℉) No.18-No.8 AWG Max.3#10 Min3#18 | | Ctn of 2500 (10 plastic bags, 250 ea.) | P15-01 | |
| Box of 50 | P15-00 | |||||
| P17 | Blue | 600V Max. 105℃(221℉) No.14-No.6 AWG Max.3#8w/1#12 Min2#10w/1#12 | | Ctn of 1500 (10 plastic bags, 100 ea.) | P17-01 | |
| Box of 50 | P17-00 |
